A Series
Product Description
Water disinfection for up to 650 L/min flow rates.
Say goodbye to bacteria, viruses, algae and other microorganisms from your drinking water, water for food and beverages, industrial process water, water for commercial use (e.g. buildings, hospitals, hotels, etc.), DM plants, RO plants and more.

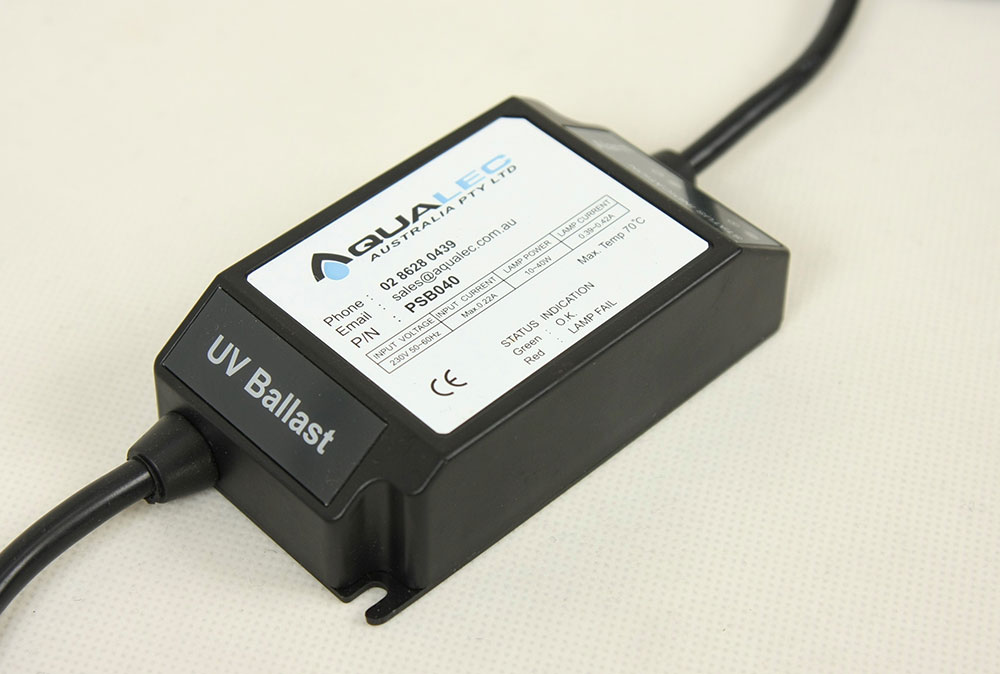

The Aqualec A series is the most simple and basic UV system available from Aqualec Australia. The choice of controllers let you choose from the most basic plug in units to systems with analogue output for intensity output to PLC and BMS, from indoor to weatherproof units.

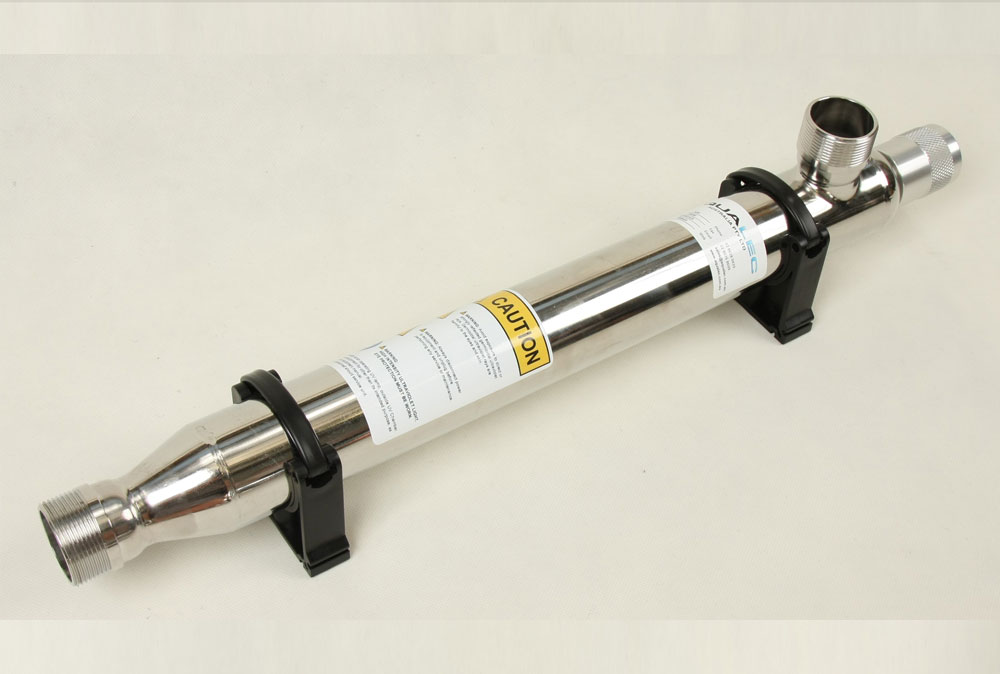

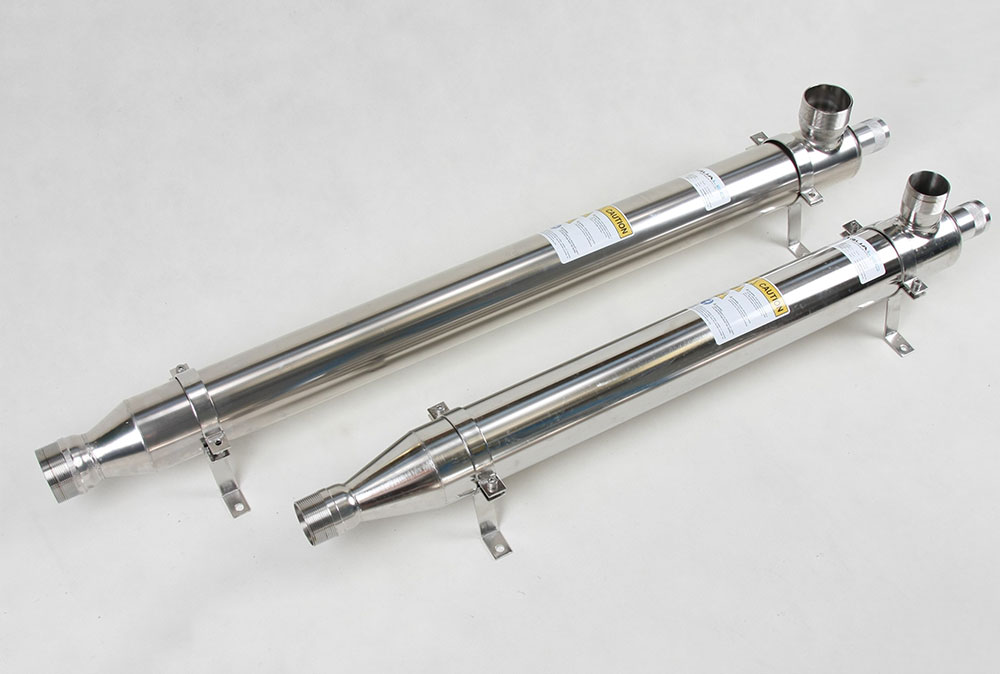

The ‘Bottom Entry’ design makes the installation of the A Series reacors very simple. The chamber can be installed easily in a main or bypass pipe, horizontally or vertically, allowing for 360° turning on the axis. The robust construction of the A Series reactors means it can perform reliably in demanding settings.
The A Series UV reactor uses low-pressure UV lamps which are available in different strengths and emit the 254 nm wavelengths required for disinfection.

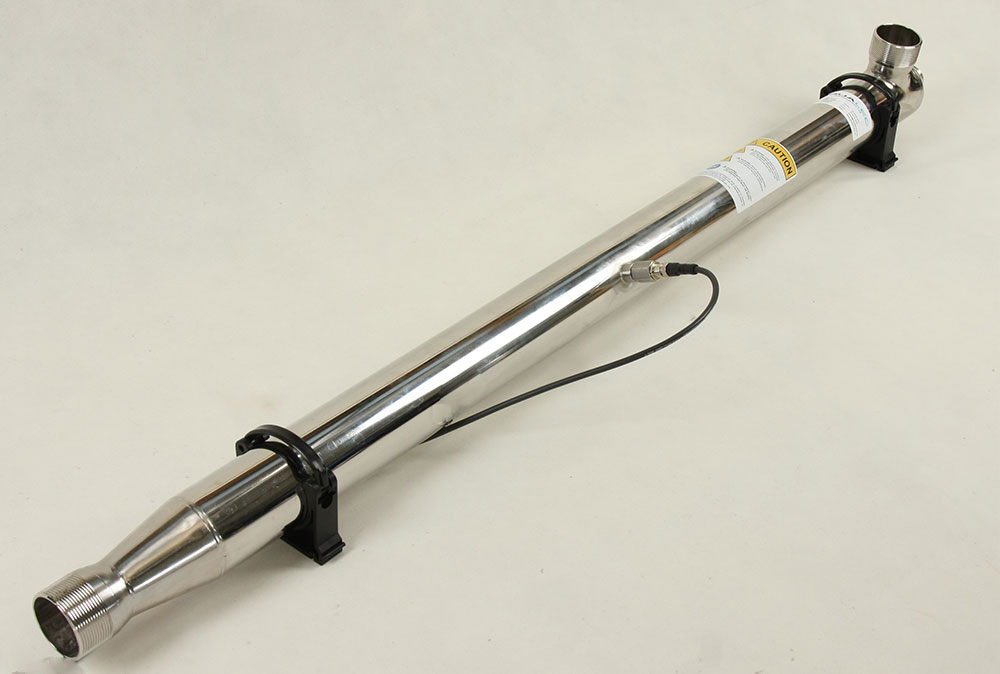

The A Series UV Reactors offers the option of a UV sensor (4-20 mA) to continuously monitor UV lamp output.
For more information please enquire below.
- High quality 316 grade stainless steel reactor – ensures longevity of the system.
- BSP threaded connections– for ease of connection to plumbing infrastructure.
- Heavy duty HDPE brackets – for simple mounting.
- Lamp fail alarm – alerts user and prevents untreated water from being consumed.
- Optional Intensity Sensor available.
- Innovative high output, low pressure UV lamps – target UV dose is maintained throughout lamp life.
- Pure fused quartz sleeves – allows optimum penetration of UV light through to the water.
- Lamps parallel to water flow – water disinfected from chamber entry point to exit.

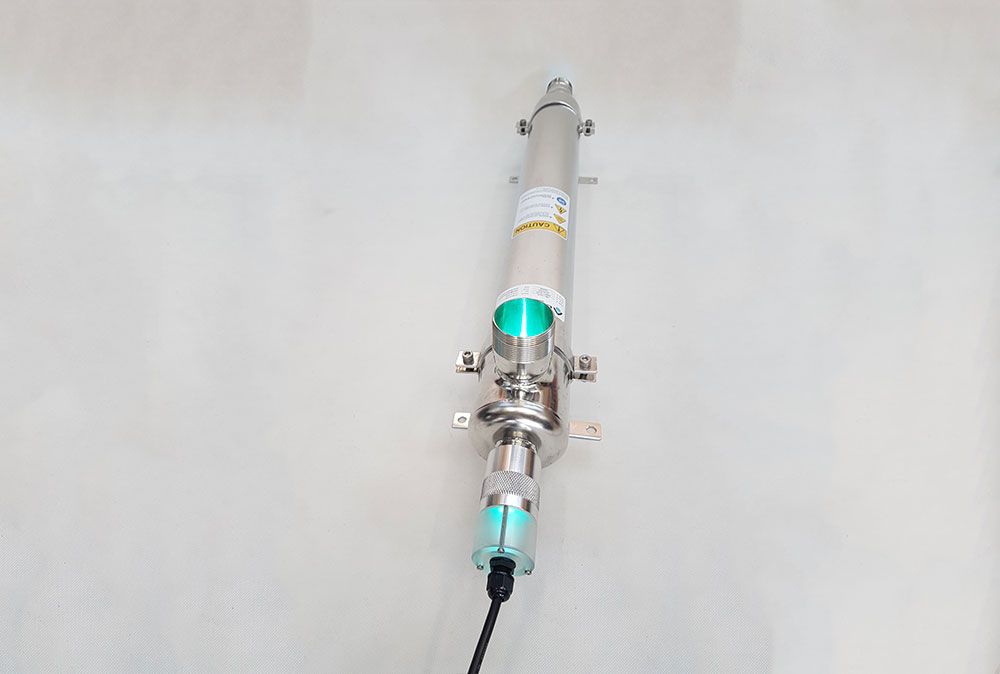

- View port located on top of reactor – user can visually see if the UV lamp is operating, no leaks from chamber view port like other inferior units on the market.
- Reliable Disinfection
- Long life performance
- Robust design and fabrication
- Simple to install
- Simple to operate
- Simple to maintain, (Self guiding quartz install)
- Optional upgrades
- Spare parts always available
Applications
Domestic Drinking Water
Tank water
Beverages
Industrial Process
